Lewis Tech LHP+ U4 Complete Brake Set
$459.00
-
4*17mm-piston caliper designed for tougher challenging trails.
Patented 3 Adjustment Technologies for Leverage Ratio & Lever Reach & Bite Point.
Front+Rear Brakes weight = 639g(Oil Hose included), 422g without Oil Hose.
4x17mm Titanium+Ceramic pistons with TP-40 sintered Brake pads.
A pair of brakes uses a total of 8 Titanium pistons and 18 Titanium screws for each component.
Approx. 68g for titanium parts, 107g for stainless steel parts, cumulative weight reduction of approx. 39g
Upgraded hinged clamp, no fray bike handlebar.
Easy Bleeding Technology.
Mineral Oil and Kevlar K28 hose.
High-precision CNC machining technology.
Powerful but predictable braking force.
Ultra light lever action.
Bearing pivots provide superior modulation and feel.
*Brakes are setup as Left Front, Right Rear. Sold as Complete set only.
Description
-
Technology
-
Newly Upgraded Leverage Ratio Adjustment SystemThe LHP brake lever adopts a newly upgraded leverage ratio adjustment system, which has a better adjustment experience.
-
Leverage Ratio AdjustmentLoosen the lever ratio set screws and adjust the Lever ratio by turning the lever ratio adjustment knob.
Tighten the set screws after adjustments.
Turn the lever ratio adjustment knob to adjust the brake lever ratio to get a braking feel that suits you.
-
Dual Adjustment Of Lever Reach & Bite PointThe LHP lever features a patented technology for dual adjustment of Lever reach & bite point, combined with a new lever ratio adjustment system, for an incredible range and freedom of adjustment.
-
Independent Cooling FinsCooling Fins for better heat dissipation performance
-
Anti-Leak Oil SystemUse Anti-leak oil system, which makes disassembly and assembly and internal wiring easier.
-
Standard Split Clamp With Upper And Lower Locking DesignStandard Split clamp with upper and lower locking design improves the fault-tolerant of clamp installation and meets the requirements of handlebar designs with different tolerances.
Torque: 3Nm
-
Stainless steel Pistons with Insulation Layers4x 17mm Stainless steel Pistons with Insulation Layers
SPECIFICATIONSMASTER CYLINDER Type Axial Material CNC 7075T6 Aluminum Body Finish Black, Silver Clamp Color Black, Silver Clamp Type Split Screws Stainless Steel Adjustable Lever Reach YES, Tool Free Adjustable Pad Bite Point Yes, with 2mm Allen key -
-
TP-40 Sintered Brake PadsLHT Ultimate uses a 40mm wide sintered metal TP-40, a larger area meant for better wear resistance and heat decay performance.
*Brakes are setup as Left Front, Right Rear. Sold as Complete set only.
Additional information
| Weight | 4 lbs |
|---|---|
| Dimensions | 12 × 12 × 4 in |
| Color | Silver, Black |
Related products
-

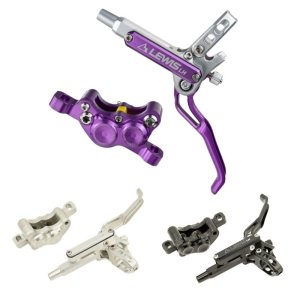

Lewis Tech LH4 Brake set
Price range: $359.99 through $399.99Select options This product has multiple variants. The options may be chosen on the product page -
Lewis Tech LHT Ultimate 4 Brake Set – Titanium Bolts & Pistons
$509.00Select options This product has multiple variants. The options may be chosen on the product page -

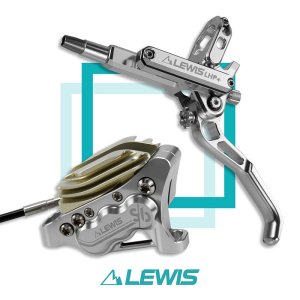

Lewis Tech LHP+ S6 Complete Brake Set
